We have developed an automated Street Lighting Circuit design including Control Cabinet location, and type selection, cable and duct layout, and Single Line Diagrams.

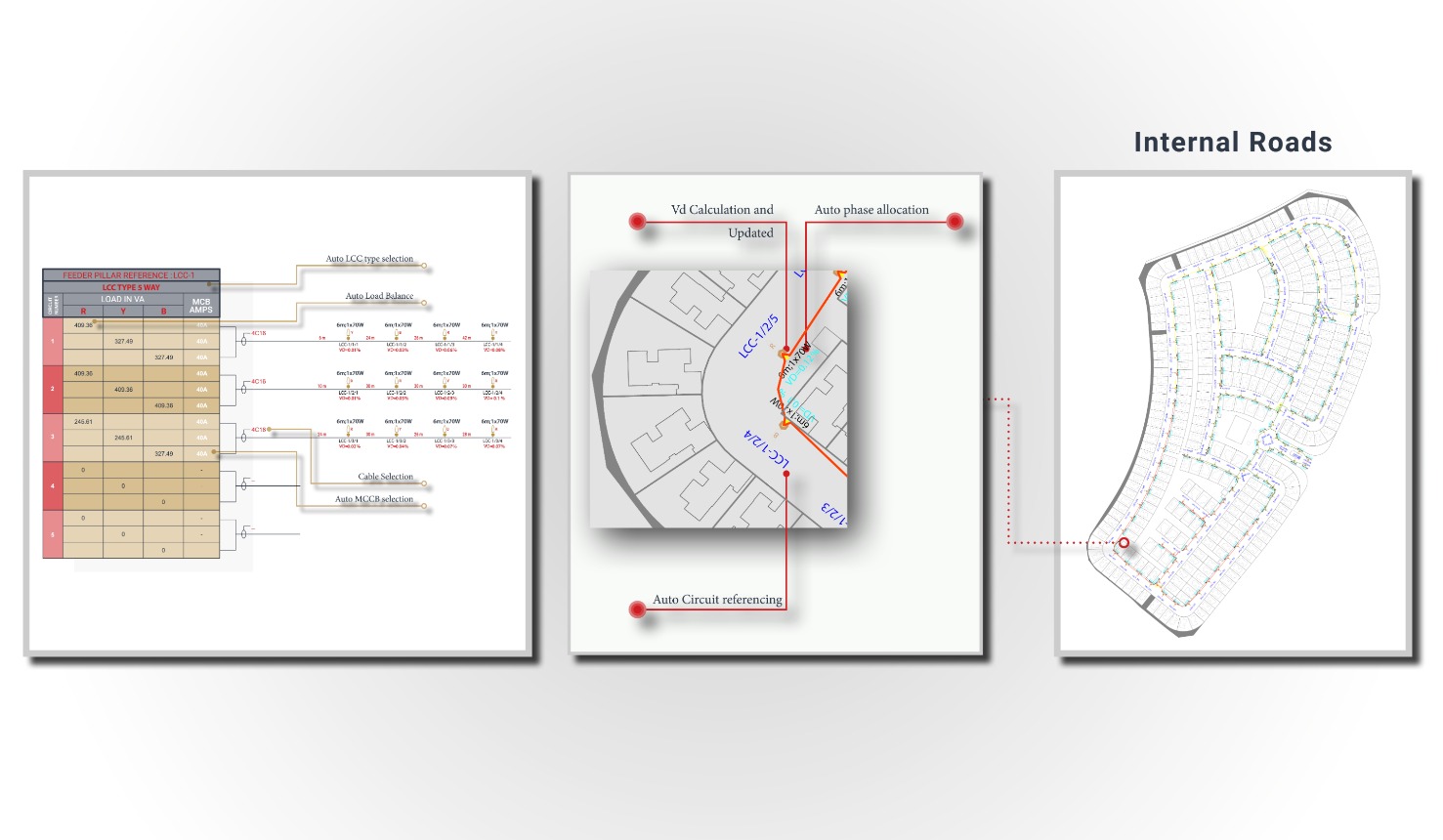

Automated poles and circuit load balancing, Voltage drop calculation, cables selection, pole labels
Based on the graph model, the algorithm probe LCC position, checking voltage drop and the maximum number of poles per circuit (predefined user option) until one of the limits is reached.
Voltage drop calculations are based on 4 wire system considering common neutral conductor and current phase angle.
The length of the cable is calculated based on the shortest path algorithm, providing accurate input for the voltage drop calculations.
Reduce design time
Benefit from ready to print drawings in AutoCAD format:
Simultaneous solution for the different lighting fixtures by type segregated as per user preference (High Mast, Underpass, Standard poles)
